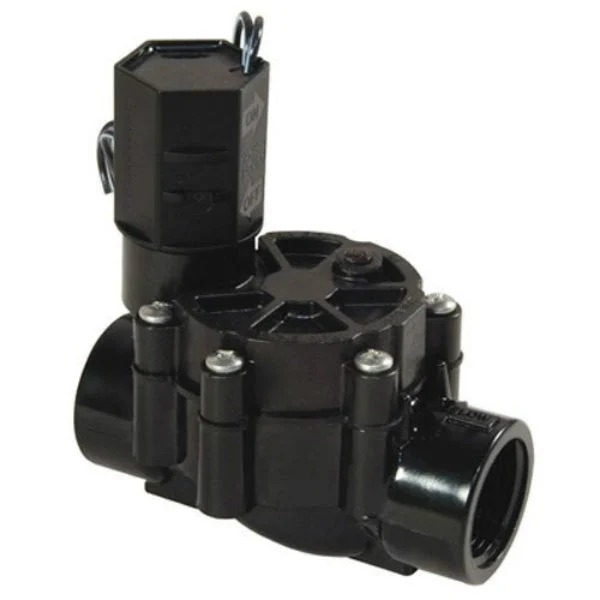

Rain Bird CP-075 Electric Automatic In-Line Irrigation Valve 3/4″ FPT

Buna-N diaphragm offers superior performance in harsh water environments. Reliable, non-clogging design. Reverse Flow design reduces stress on diaphragm for dependable operation. In-line design minimizes pressure loss of dirt and debris during installation and system start-up. 3/4 in. female pipe thread inlet and outle

Buna-N diaphragm offers superior performance in harsh water environments. Reliable, non-clogging design. Reverse Flow design reduces stress on diaphragm for dependable operation. In-line design minimizes pressure loss of dirt and debris during installation and system start-up.

• 3/4 in. female pipe thread inlet and outlet inline irrigation valve
• Buna-N diaphragm offers superior performance in harsh water environments
• Reliable, non-clogging design
• Reverse Flow design reduces stress on diaphragm for dependable operation
• In-line design minimizes pressure loss of dirt and debris during installation and system start-up
• Operates automatically or manually with manual bleed screw
• Works with any standard sprinkler timer
• Designed for below-ground installation, out of sight and away from playful hands
• Energy efficient, low power encapsulated solenoid with captured plunger.

Specifications:

• Valve Size: 3/4 in
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Operating Temperature: Minimum Water and Ambient Air Temperature: 40° F (4° C), Water temperature: up to 110° F (43° C),  Ambient temperature: up to 125° F (52° C)
• Electrical Specifications: 24 VAC 50/60 Hz solenoid, Inrush: .30 amp, Holding: .19 amp
• Flow Range: 0.2 to 22 gpm, For flows below 3 GPM or drip line applications install a 200 mesh filter before the valve
• Operating Pressure: 15 to 150 psi

Specifications

MFR: CP-075 SKU: 10332226 UPC: 077985600006 Brand: Rain Bird Length: 6 Width: 6 Height: 4
