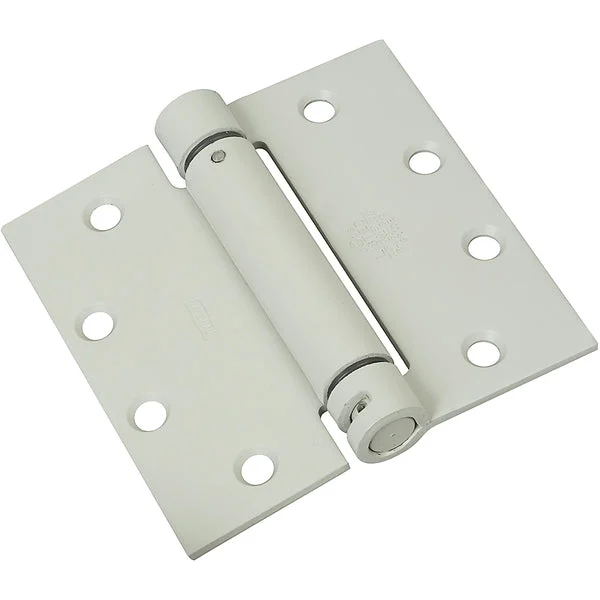

National Hardware N236-013 Adjustable Steel Spring Hinge Prime Coat 4-1/2 Inch for Heavy Doors

National Hardware 2060R Adjustable Spring Hinge is ideal for use in corridors, entrances and stairways. Automatically closes door – an alternative to overhead mounted door closers. Patented ratchet adjustment eliminates need for adjustment locking pin. Meets NFPA8 standard for 3 hour fire rated doors – minimum 2 spring

National Hardware 2060R Adjustable Spring Hinge is ideal for use in corridors, entrances and stairways. Automatically closes door – an alternative to overhead mounted door closers. Patented ratchet adjustment eliminates need for adjustment locking pin. Meets NFPA8 standard for 3 hour fire rated doors – minimum 2 spring hinges per door required. UL listed for doors up to 4′ x 8′ weighing up to 180 lbs. Conforms to ANSI/BHMA standard A156.17, Grade 1.

• Size: 4-1/2″ x 4-1/2″
• Finish: Prime Coat
• Material: Steel
• Safe Working Load (SWL): 50 lbs
• Ideal for use in corridors, entrances and stairways
• Automatically closes door – an alternative to overhead mounted door closers
• Patented ratchet adjustment eliminates need for adjustment locking pin
• Meets NFPA8 standard for 3 hour fire rated doors – minimum 2 spring hinges per door required
• UL listed for doors up to 4′ x 8′ weighing up to 180 lbs.
• Conforms to ANSI/BHMA standard A156.17, Grade 1.

Specifications

MFR: N236-013 SKU: 12201081 UPC: 886780019230 Brand: National Hardware Length: 6 Width: 4 Height: 6
