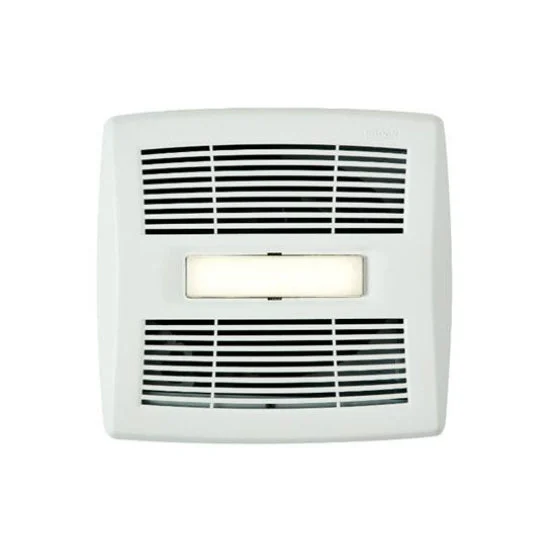

Broan AE110L InVent Series Single-Speed Fan with LED Light 110 CFM 1.3 Sones for Modern Bathrooms

This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and h

This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.

• 110 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 square feet, so your vision will always be clear and your surroundings will always be comfortable
• Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
• With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
• EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
• ENERGY STAR® Qualified
• UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
• Includes 11 watt, 3000K, integrated LED module for energy efficiency.

*Testing reflects total fan housing airtightness.

Specifications:

• Bathrooms up to (X) Square Feet: 105
• Ceiling Installation: Yes
• CFM @ 0.10″: 110
• CFM @ 0.25″: 92
• Color: White
• Duct Direction: Horizontal
• Duct Size: 4″
• Grille Finish: White Polymeric
• Grille Length: 11-3/4″
• Grille Width: 12-1/2″
• HVI Certified: Yes
• Light Bulb Quantity: Integrated LED Module
• Light Bulb Wattage: 11
• Minimum construction space required: 2 x 6
• Motor engineered for continuous operation: Yes
• Rated Amps: 0.5
• Rated Watts: 23.4
• Room-Side Installation: Yes
• Sones: 1.3
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes

Specifications

MFR: AE110L SKU: 11599652 UPC: 026715236664 Brand: Broan Length: 10 Width: 10 Height: 6
